Cascading Drop Downs with InfoPath 2010 Browser Forms

SharePoint 2010 InfoPath forms services in combination with InfoPath 2010 browser forms have enabled end users and developers to create cascading drop downs within browser forms without even thinking about a line of code!

So if you want to keep it simple or are not terribly technical follow these steps to create cascading drop downs within SharePoint 2010.

The first thing you will need is a SharePoint 2010 list to populate the drop downs. Basically it works like this: Each Item and it's respective columns will filter the items in the following drop downs. For this example I have created a 'location' list called 'suburbs'.

There are two other metadata columns that define the suburb: State and Country.

The way the cascading drop downs will work in InfoPath is that the first selection will be 'Country' which will then filter the second drop down, 'State' which in turn once slected, will give the user filtered option in the third drop down; Suburb.

The List

Custom list created with two additional metadata choice columns (Country and State).

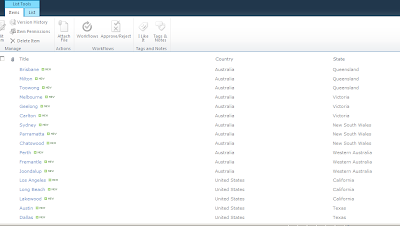

List with some sample data:

The Form

To create the cascading drop downs in the form you will first need to create 3 empty datafields.


Add the three drop downs of the fields to the form. To populate the form with the columns from the list create a new SharePoint list data connection, which can be found under the 'data' tab.

Select the SharePoint server and then select the list. Select the 3 columns (title plus the two columns you created earlier).

You can check the box 'Store a copy of the data in the form' if you would like to view the form in offline mode. Finish the wizard.

Now right click on the first drop down and go to Drop Down List Box properties. Select 'Get Choices from an External Datasource'. Select 'Suburb' (this will be automatically selected if it is your only external datasource). For the first 'Country' drop down select 'Country' as the value and display name and also check the box 'Show only entries with unique display names' (this will avoid duplication).


Now right click the 'State' drop down, follow the same procedure as before except this time select 'State' for value and display. However when you select the 'State' option, you will need to click on the 'Select XPath' from next to the 'Entries' box. This will allow you to filter the 'States' based on the selected Country.

Click 'Add' to add a new filter. In the first drop down box you will need to select the value of the InfoPath field for 'Country' and then in the third drop down box you will need to select the corresponding data field from the SharePoint list data connection. We are basically saying here, filter the drop down of state when the Country drop down is equal to the country in the list.

Select the 'Title' drop down and then click on 'Select a field or group'.

Change the datasource to 'Main', then select the field where 'country' is stored.

Now the middle drop down can remain as 'Equals', click on the third drop down and click on 'Select a field or group'. This time from the '(Suburbs) Secondary Datasource' expand the list and select the 'Country' field.

Click ok on all the dialogue boxes to make the changes, don't forget to click on the unique names check box. You can now text the form to see the first drop down filters the second. One thing you will notice is that if you select an option in the 'State' drop down it will remain even if you change the 'First' one, however the rest of the options will respect the filtering. This can be rectified using a rule on the first 'State' option.

However, first follow the procedure above to change the third drop down to display 'Suburb' fields and filter them agaisnt the field selected in the 'State' drop down box.

Now to create the rule that resets the other two drop downs when you reselect the first 'Country' one.

Right click on the 'Country' drop down and select 'Rules' > 'Manage Rules'. A new side panel will appear on the right which allows you to manage the rules of this particular field element.

On the Rules Tab select 'New > Action' to create a new action rule. Name the rule something like 'resetDropDowns'. Click on the 'Condition' area to create a rule condition, change this to something like: 'Country is not blank'. Then click ok.

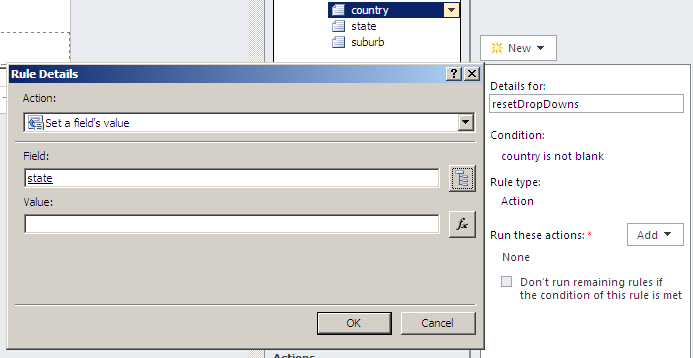

Click on 'Add > Set a field's value'. Set each of the other two drop downs to 'nothing'. Do this once for each of the other drop down fields.

The rule should look something like this:

There you have it, you can now test your form's cascading drop downs.
